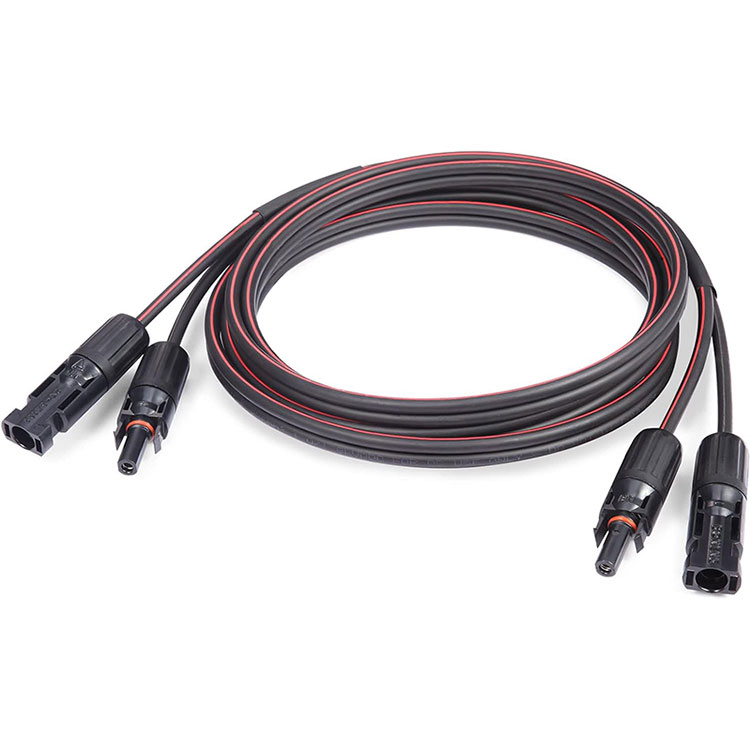

Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft

Qhov no Cable daws

Lub Twin Solar Cable yog ib qho ua tiav, npaj-rau-siv hnub ci txuas ntxiv los ua ke. Tsis zoo li tej kab hluav taws xob uas yuav tsum tau txiav ntawm qhov chaw, stripping, thiab txuas txuas, chav tsev ua ntej no suav nrog:

• Ob qho tib si 10 AWG conductors (zoo thiab tsis zoo) sib raug zoo nyob rau hauv ib tug ntxaib configuration

• Factory-installed txiv neej thiab poj niam connectors ntawm txhua kawg

• Shrink-wrap reinforcement ntawm cov ntsiab lus tseem ceeb

• Sealed weatherproof kev tsim kho ntsuas IP68

Cov Khoom Siv Tseem Ceeb

Technical Specifications

Tus coj kev tsim kho

CovShrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ftsiv 84 strands ntawm tinned tooj liab hlau ib tus neeg xyuas pib:

Vim li cas 84 strands tseem ceeb: Cov suav ntau dua strand muab kev yooj yim dua piv rau cov khoom siv los yog coarse-stranded cables. Qhov kev yooj yim no ua kom yooj yim rau kev taug kev ncig lub ru tsev obstacles, los ntawm cov ntsiab lus nkag nruj, thiab nyob rau hauv qhov chaw kaw RV thaum tuav lub peev xwm nqa tam sim no.

Rwb thaiv tsev & Jacket Materials

Kev ntsuas hluav taws xob

Environmental & Physical Specifications

Connector Specifications

• Connector gender configuration: Txiv neej-rau-poj niam ntawm txhua qhov kawg (tso cai txuas ntxiv ntawm ntau lub cables hauv koob)

• Cov khoom siv txuas: PPO (polyphenylene oxide) - xaiv rau qhov ruaj khov ntawm qhov kub thiab txias

• Sealing: Huab cua nruj kev tsim kho, IP68 ntsuas rau dej raus dej

• Compatibility: Txheem PV connector interface rau universal compatibility nrog feem ntau hnub ci vaj huam sib luag thiab khoom siv

Engineering Features uas teeb no Cable sib nrug

Shrink Wrap Reinforcement

Lub ntsiab feature ntawm lubShrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ftyog lub shrink-wrapped reinforcement siv rau ob qho tib si conductor kawg. Qhov kev txhawb zog no muab:

• Kev tiv thaiv kev sib cais: Cov kev teeb tsa ntxaib xaim tau txais kev txhawb nqa cov txheej txheem uas cov cables nkag mus rau cov khoom sib txuas, tiv thaiv tus neeg ua haujlwm ntawm kev sib cais los ntawm kev tuav hnyav lossis rub lub zog.

• Lub zog nyem: Lub ntsws qhwv ua raws li cov txheej txheem kev ntxhov siab, hloov cov khoom siv thauj khoom deb ntawm kev sib txuas crimped

• Environmental sealing: Cov ntaub qhwv ua ib qho kev tiv thaiv dej ntxiv ntawm cov kab txuas txuas txuas

• Kev pom kev ncaj ncees: Tswj cov kab zauv ntxaib-xaim txawm tias tom qab rov ua dua thiab tshem tawm cov voj voog

Twin Wire Configuration

Lub 10 AWG twin xov hlau yog sib koom ua ke nyob rau hauv ib qho kev teeb tsa sib txuas, txo cov kev tswj xyuas kev nyuaj:

• Ib leeg rub: Ob lub conductors raug rub ib txhij thaum lub installation

• Txo clutter: Tshem tawm cais cov kab zoo thiab tsis zoo

• Kev txhim kho kev huv: Khaws cov kab hauv kab hauv lub ru tsev

• Simplified identification: Dub thiab liab sheaths muab tam sim polarity paub

Tinned Copper Conductors

Txhua tus neeg xyuas pib muaj 84 strands ntawm high-purity tooj liab nrog tin txheej. Qhov txheej tin no muab:

• Corrosion tsis kam: Tiv thaiv tooj liab oxidation uas ua rau muaj zog tiv thaiv lub sijhawm

• Solderability: Tin nto lees txais kev sib txuas ntawm kev sib txuas yog tias yuav tsum tau hloov kho

• Lub sij hawm ntev conductivity: tuav tsis tshua muaj kev tiv thaiv nyob rau hauv lub cable lub neej kev pab cuam

XLPE rwb thaiv tsev

Hla-txuas polyethylene rwb thaiv tsev muaj kev ua tau zoo tshaj li tus qauv PVC:

• Kev kam rau siab kub: Ua haujlwm ntseeg tau los ntawm -40 ° F txog + 194 ° F, ua kom haum rau saum toj kawg nkaus kub

• Dielectric lub zog: XLPE muab siab dua qhov muaj peev xwm tiv taus ntau dua li PVC

• Environmental stress resistance: Resistant cracking nyob rau hauv thermal cycling thiab mechanical stress

• Tshuaj tiv thaiv: Tiv thaiv kom raug ozone, UV hluav taws xob, thiab cov kuab tshuaj ntau

Installation Lub sij hawm sib piv

Yuam kev txo cov txiaj ntsig

Lub Twin Solar Cable 30Ft tshem tawm cov teeb meem kev teeb tsa ua haujlwm:

• Qhov ntev stripping tsis raug - ua rau kev sib cuag tsis txaus lossis raug tus neeg xyuas pib

• Tsis tiav crimping - ua rau muaj kev sib txuas siab thiab tsim hluav taws xob

• Rov qab polarity - txuas qhov zoo rau qhov tsis zoo ntawm ib qho kawg

• Tsis txaus cua sov sealing - cia noo noo nkag mus rau hauv connector

• Kev puas tsuaj thaum lub sij hawm installation - tau qhab nia rwb thaiv tsev los ntawm kev siv cov cuab yeej tsis raug

• Overtightened kev sib txuas - deforming connector vaj tse

Tus nqi sib piv

Quality Assurance & Manufacturing Background

Kev Ntsuas Cov Peev Xwm

Paido ua haujlwm thoob ntiaj teb kev ua haujlwm siab-voltage ib nrab tso tawm xeem chav:

Kev ntsuam xyuas muaj feem xyuam rau cov khoom kab no:

• Kev kuaj paug ib nrab: Tshawb xyuas qhov cuam tshuam ntawm rwb thaiv tsev ua ntej cov khoom xa tuaj

• High-voltage withstand test: Txheeb xyuas qhov tseeb ntawm dielectric

• Conductor DC resistance test: validates conductor quality

• Capacitance thiab dielectric poob ntsuas: Ntsuas kev ua haujlwm rwb thaiv tsev

Cov ntawv pov thawj tuav

Kev Tswj Xyuas Zoo

• Tag nrho cov khoom dhau kev soj ntsuam los ntawm Bureau of Quality Supervision

• Kev ntsuam xyuas zoo hauv nroog thiab hauv nroog tau ua raws li cov qauv hauv tebchaws

• Lub tuam txhab kev tswj hwm kev ua tau zoo ua kom muaj kev nyab xeeb ua haujlwm ib puag ncig thaum tswj cov khoom lag luam zoo ib yam

• Muaj peev xwm ua tau raws li cov kev xav tau ntawm cov neeg siv khoom hauv tsev thiab thoob ntiaj teb

• Installation Cov kev coj ua zoo tshaj plaws

Pre-Installation Checklist

• Txheeb xyuas qhovShrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ftntev haum rau koj lub vaj huam sib luag-rau-cov khoom nyob deb

• Paub meej tias cov connectors phim koj lub hnub ci vaj huam sib luag thiab them tus tswj / inverter connectors

• Tshawb xyuas lub cable rau kev puas tsuaj shipping ua ntej xa mus

• Npaj cable routing kom txo tau raug cov npoo ntse thiab qhov chaw siab-footfall

Pom zoo cov kauj ruam installation

• Hla lub cable los ntawm lub hnub ci vaj huam sib luag array mus rau tus nqi tswj los yog inverter qhov chaw

• Ruaj ntseg lub cable siv cov clips tsim nyog los yog cable ties txhua 18-24 ntiv tes

• Tsis txhob khoov ntse - tuav lub vojvoog dabtsi yog khoov yam tsawg kawg 5 × txoj kab uas hla

• Cia cov kev pabcuam loops ntawm ob qhov kawg rau kev saib xyuas yav tom ntej

• Txuas tus neeg xyuas pib liab rau qhov zoo polarity thiab dub rau qhov tsis zoo thoob plaws hauv lub cev

Kev tiv thaiv ib puag ncig

• Rau kev nkag mus rau lub ru tsev, siv cov qog tsis zoo los yog cov thawv sib txuas

• Nyob rau hauv high-UV ib puag ncig, xav txog kev tiv thaiv kab txuas ntxiv (txawm tias XLPE tsho muab UV tiv thaiv)

• Rau RV daim ntawv thov, ruaj ntseg cable tiv thaiv cua vibration siv fasteners tsim nyog

Compatibility & System Integration

Cov khoom siv sib xws

Lub Twin Solar Cable 30Ft ua haujlwm nrog:

• Hnub ci vaj huam sib luag: 12V thiab 24V nominal panels nrog cov qauv txuas txuas

• Charge controllers: PWM thiab MPPT controllers rated for 10 AWG input

• Inverters: Me-scale off-grid thiab grid-tie inverters

• Cov thawv sib txuas: Txais cov khoom siv sib txuas nrog cov khoom sib txuas

• Roj teeb tshuab: 12V thiab 24V roj teeb lub txhab nyiaj los ntawm kev sib txuas ntawm cov tswj

Kev Taw Qhia Qhov Loj

Cov lus nug nquag nug (FAQ)

Q1: Vim li cas thiaj xaiv nws dhau tus qauv txuas ntxiv?

Lub shrink-wrap reinforcement ntawm ob qho kawg yog qhov sib txawv tseem ceeb. Nws tiv thaiv cov ntxaib conductors los ntawm kev sib cais nyob rau hauv strain, ncua lub neej cable, thiab muab ntxiv strain nyem nyob rau hauv lub connector hlws ris - ib tug taw tes uas feem ntau yuav tsis ua hauj lwm nyob rau hauv lub teb-chaw cables.

Q2: Puas yog lub cable no sib haum nrog txhua hom hnub ci vaj huam sib luag?

Cov connectors ua raws li kev lag luam tus qauv interface siv los ntawm feem ntau cov tuam txhab loj hnub ci vaj huam sib luag. Txawm li cas los xij, peb pom zoo kom lees paub koj lub vaj huam sib luag hom txuas ua ntej yuav khoom. Adapter cables muaj yog tias muaj kev sib raug zoo tsis sib haum xeeb tshwm sim.

Q3: Dab tsi yog qhov siab tshaj plaws amperage no cable tuaj yeem nqa tau zoo?

10 AWG conductors raug ntsuas rau 48 Amps qhov siab tshaj plaws tam sim no. Lub peev xwm no tshaj qhov tso zis ntawm feem ntau me me-rau-nruab nrab thaj chaw thiab RV hnub ci arrays, muab kev nyab xeeb zoo.

Q4: Kuv puas tuaj yeem txuas ntau Shrink Wrap Reinforced 10 Gauge Twin Solar Cable units ua ke?

Yog lawm. Tus txiv neej-rau-poj niam connector configuration enables daisy-chaining. Txawm li cas los xij, tag nrho qhov hluav taws xob poob nce ntxiv nrog rau qhov ntev cable-nug koj tus tsim qauv rau kev khiav haujlwm ntev dua.

Q5: Puas yog cable weatherproof rau sab nraum zoov RV thiab ru tsev siv?

Yog lawm. Lub cable yog IP68 ntsuas, txhais tau tias nws muaj kev tiv thaiv tsis tu ncua rau hauv dej. XLPE rwb thaiv tsev thiab cov khoom sib txuas ua kom ntseeg tau tias kev ua tau zoo hauv cov nag, daus, thiab cov av noo ib puag ncig.

Q6: Cov txiaj ntsig ntawm XLPE rwb thaiv tsev yog dab tsi?

XLPE muab kev kub siab dua (-40 ° F txog 194 ° F), lub zog dielectric zoo dua, zoo dua ib puag ncig kev ntxhov siab, thiab kev pab lub neej ntev dua piv rau PVC rwb thaiv tsev feem ntau pom nyob rau hauv qis qis cables.

Ua raws li Teb Chaws Asmeskas Kev Ua Lag Luam

Daim ntawv ceeb toom tseem ceeb rau Asmeskas Cov Neeg Siv Khoom

Lub Shrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft yog tsim los nrog cov khoom siv hluav taws xob siv hauv Tebchaws Meskas. Thov nco ntsoov:

• Qhov hluav taws xob thiab voltage specifications txawv thoob ntiaj teb

• Cov khoom no yuav xav tau lub adapter lossis converter rau siv sab nraum Teb Chaws Asmeskas

• Paub meej tias kev sib raug zoo nrog koj lub hom phiaj kev xav tau hluav taws xob ua ntej yuav khoom

Siv tau System Types

• 12V DC hnub ci tshuab (nrog rau RV thiab marine daim ntaub ntawv)

• 24V DC tsev solar systems

• Cov kab ke nrog 60V siab tshaj DC voltage (hauv cov khoom ntsuas)

Paido Group Limited - Ningbo, Suav teb. Manufacturing certified solar cables txij thaum 2003. Rau lubShrink Wrap Reinforced 10 Gauge Twin Solar Cable 30Ft, nrog rau cov nqi ntau, cov ntaub ntawv cov ntaub ntawv, thiab cov qauv thov, hu rau peb pab neeg muag khoom los ntawm daim ntawv nug.
