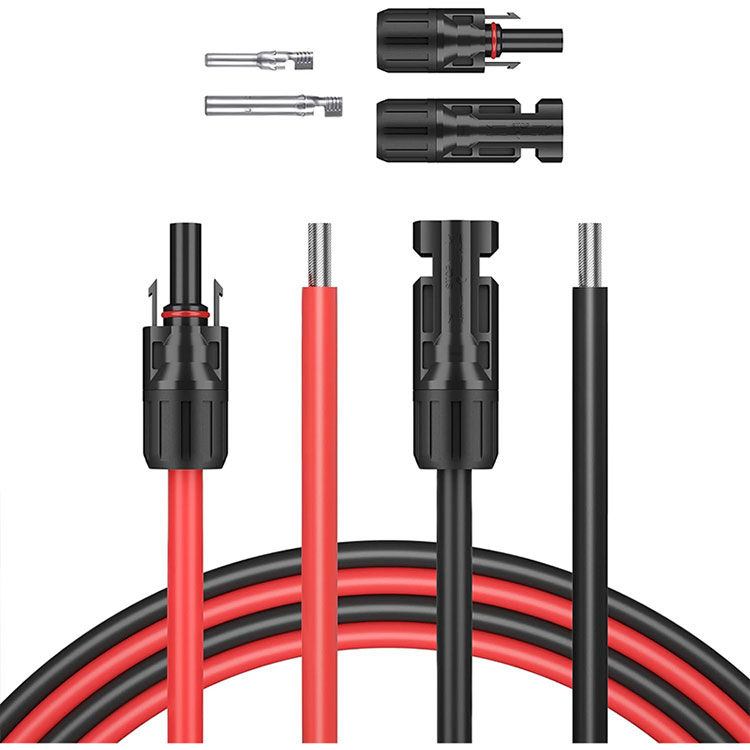

Vibration Resistant 10 Gauge Luv Solar Extension Cable

Engineered thiab tsim nyob rau hauv qhov system zoo ntawm Paidu Group Limited, lubVibration Resistant 10 Gauge Luv Solar Extension CableExporter yog lub hom phiaj-ua rau cov ntawv thov photovoltaic ua haujlwm nyob rau hauv ib puag ncig nrog cov neeg kho tshuab tsis tu ncua, suav nrog RV rooftop systems, marine solar arrays, thiab mobile off-grid zog platforms.

Cov kab hluav taws xob niaj hnub niaj hnub niaj hnub feem ntau ntsib kev ua haujlwm tsis zoo thaum raug rau lub sijhawm ntev oscillation, qhov uas rov ua micro-bending ua rau tus neeg xyuas pib qaug zog thiab qhov sib txuas tsis ruaj khov. Qhov kev tsim qauv no hais txog cov txheej txheem tsis ua haujlwm los ntawm kev sib koom ua ke ntawm kev sib koom ua ke ntawm high-strand tooj liab architecture thiab mechanically stabilized connector tuav.

Tus qauv tsim kho tshiab rau kev vibration stability

Es tsis txhob cia siab rau cov pa rigid copper cores, no cable integrates:

- Ultra-fine multi-strand tinned tooj liab neeg xyuas pib rau txhim kho flex endurance
- Kev faib tawm kev ntxhov siab thoob plaws ntau txoj hauv kev
- Anti-oxidation tinning txheej los tiv thaiv micro-strand interfaces
- Txhim kho conductivity tuav nyob rau hauv rov qab mus ncig

Cov qauv no yuav txo tau qhov tshwm sim ntawm kev puas tsuaj sab hauv los ntawm kev vibration tsis tu ncua.

Connector Locking Mechanism rau Motion Control

Ib qho tseem ceeb engineering upgrade nyob rau hauv lub connector interface system:

- Integrated locking clip tiv thaiv kev tsis sib haum xeeb
- Txhim kho mating geometry stabilizes kev sib cuag siab
- Anti-rotation vaj tse tsim resists loosening nyob rau hauv oscillation
- Hluav taws xob txuas ntxiv tau khaws cia txawm tias nyob rau hauv dynamic mechanical load

Qhov no ua kom lub kaw lus tseem muaj hluav taws xob ruaj khov thaum taug kev, kev cuam tshuam yoj, lossis kev co ntawm cov qauv.

Anti-Fatigue Material System

Lub rwb thaiv tsev txheej yog tsim los ua raws li cov neeg kho tshuab tsis zoo es tsis yog lub hau npog:

- High-flex polymer rwb thaiv tsev (TPE / hloov XLPO chav kawm)
- Elastic deformation muaj peev xwm nyob rau hauv rov khoov voj voog
- Crack-resistant molecular qauv rau lub neej ua haujlwm ntev
- Thermal stability nyob rau sab nraum zoov PV kub hloov pauv

Qhov kev sib xyaw ua ke no tso cai rau lub cable kom nqus tau lub zog ntawm lub zog es tsis txhob hloov nws ncaj qha mus rau cov tub ntxhais tooj liab.

Application-Oriented Engineering Focus

CovVibration Resistant 10 Gauge Luv Solar Extension Cableyog optimized rau:

- RV hnub ci them lub tshuab nrog txoj kev vibration tas li
- Marine photovoltaic teeb pom kev ua haujlwm yoj
- Portable off-grid zog systems yuav tsum tau tsiv mus nyob tsis tu ncua
- Kev saib xyuas txawb thiab chaw siv hluav taws xob ib ntus

Nws luv-ntev configuration ntxiv txo cov cable viav vias amplitude, minimizing mechanical fatigue ntsiab lus.

Hluav taws xob ruaj ntseg nyob rau hauv Dynamic Conditions

Txawm hais tias nws qhov kev tsim kho qhov cuab lub zog, hluav taws xob kev ua tau zoo tseem ua tau zoo:

- Tsawg-tsis kam 10AWG tus neeg xyuas pib txo qis qis qis
- Kev ruaj ntseg tam sim no kis tau tus mob raws li kev txav mus los
- Txo thermal buildup ntawm kev sib txuas interfaces
- Kev ua haujlwm zoo ib yam rau PV charging systems

Qhov no ua kom ntseeg tau tias kev co kuj tsis cuam tshuam lub zog hloov hluav taws xob.

Field Termination Guide for the Bare End

stripped ntev: 0.6 nti (15mm) - haum rau feem ntau Wago / Phoenix Hu rau lub caij nplooj ntoos hlav terminals.

Pom zoo crimp terminals: Siv tinned tooj liab nplhaib terminals rau roj teeb / maub los studs, los yog ferrules rau ntsia hlau-clamp combiner thawv.

Torque spec: Tighten terminals rau 2.2 Nm (20 in-lbs) - tsis txhob over-torque kom tsis txhob strand breakage.

Kev tiv thaiv tshav kub: Peb pom zoo kom siv cov nplaum nplaum-lined tshav kub shrink hla lub crimp chim rau waterproofing nyob rau hauv sab nraum zoov combiner thawv.

Kev ntseeg tau qhov tseeb

Factory xeem suav nrog:

- Conductor resistance verification
- Rwb thaiv tsev dielectric zog kuaj
-Txoj kev ntsuas lub zog ntsuas qhov txuas
- Kev co simulation endurance xyuas
- Kev ntsuas kub ntawm lub voj voog kev ruaj ntseg

Cov txheej txheem ntawmVibration Resistant 10 Gauge Luv Solar Extension Cablexyuas kom muaj kev ua tau zoo nyob rau hauv lub ntiaj teb kev poob siab PV ib puag ncig.
